Specification:

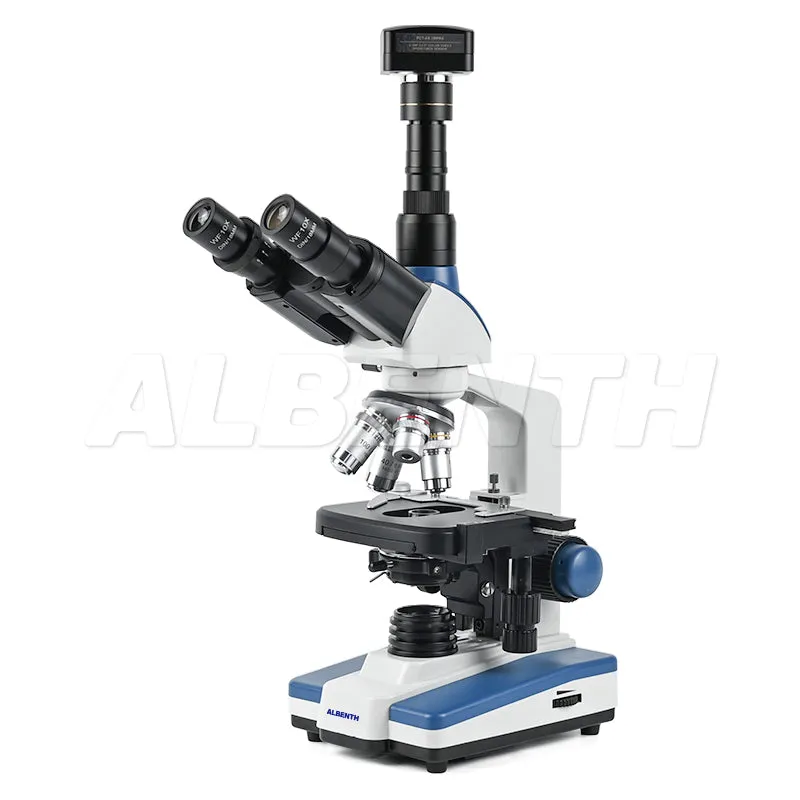

● Head: Trinocular head, 45° inclined, 360° rotatable, interpupillary distance 48-75mm, Left diopter adjustment ±5

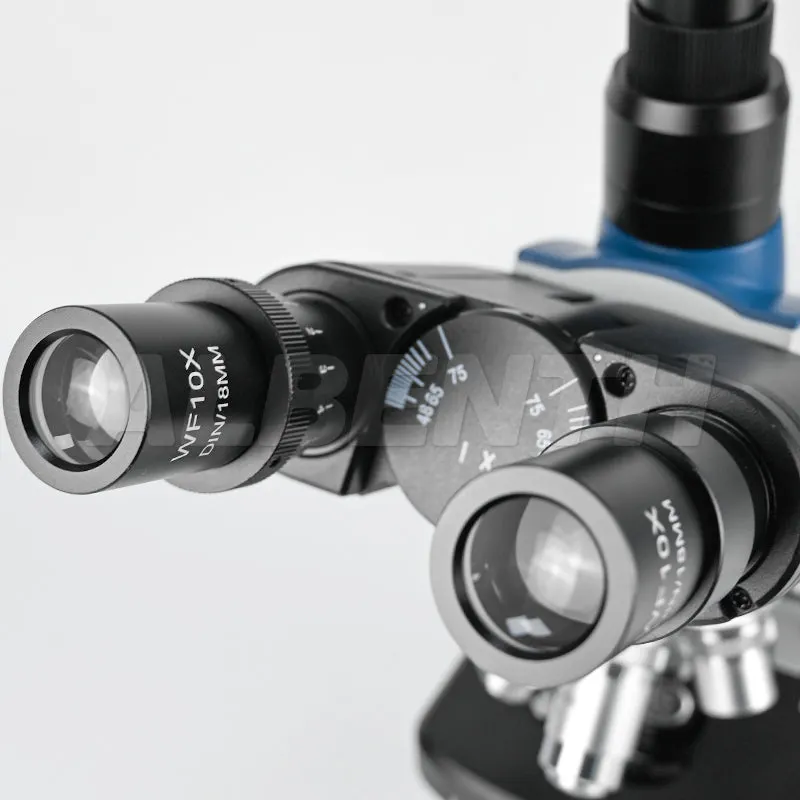

● Eyepiece:
- WF10X/18mm, insert dia. 23.2mm
- WF25X
● Camera adapter: C-mount Adapter 1X
● DIN Achromatic Objective:
- 4x/0.10, W.D.=18.6mm
- 10x/0.25, W.D.=6.5mm
- 40x(S)/0.65, W.D.=0.47mm
- 100x(S, Oil)/1.25, W.D.=0.07mm

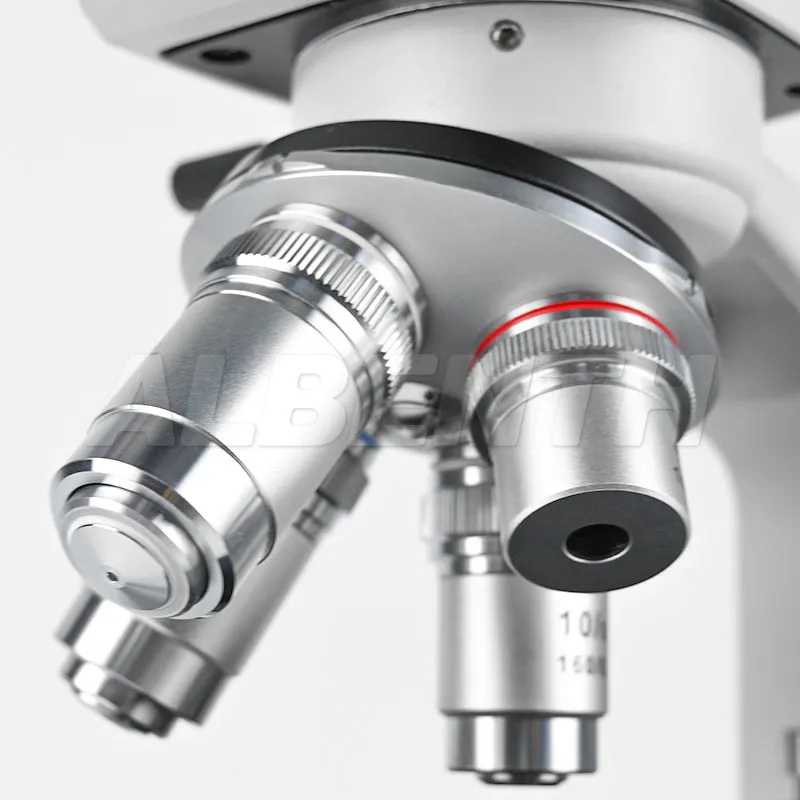

● Nosepiece: Quadplex nosepiece

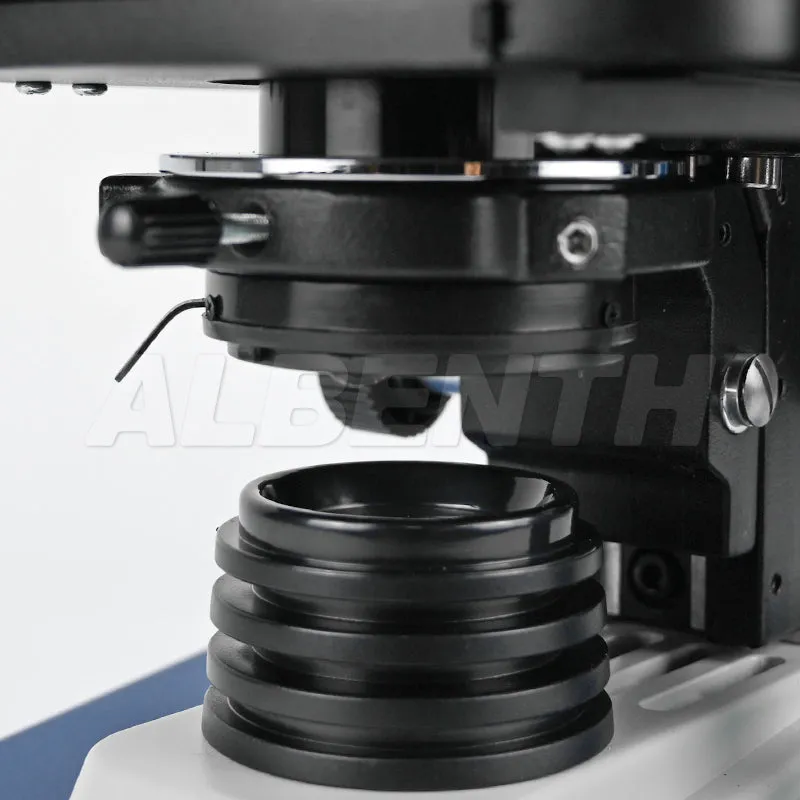

● Condenser: NA1.25 Abbe condenser with iris diaphragm
● Mechanical Stage: Anti-scratch painting double-layer stage size: 118mm x 127mm, travel: 70mm x 21mm, with caliper
● Focusing: Coaxial coarse and fine focusing knobs, travel range: 26mm, Scale: 0.002mm (2um)
● Transmitted Illumination: Variable-intensity 1W LED
● Main body material: Aluminum die-cast
● Input voltage: 90V-240V 50/60Hz

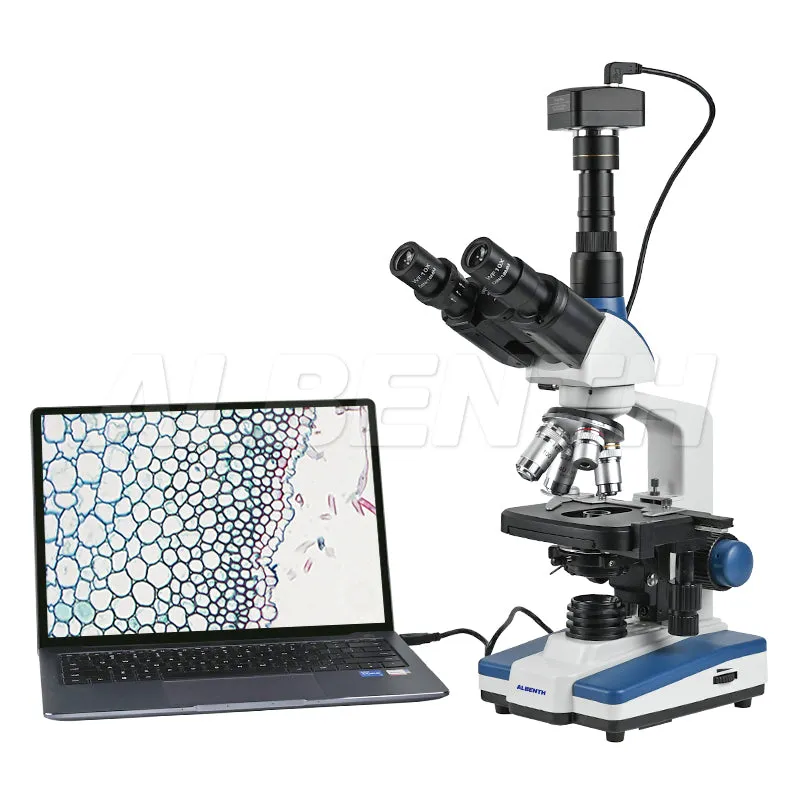

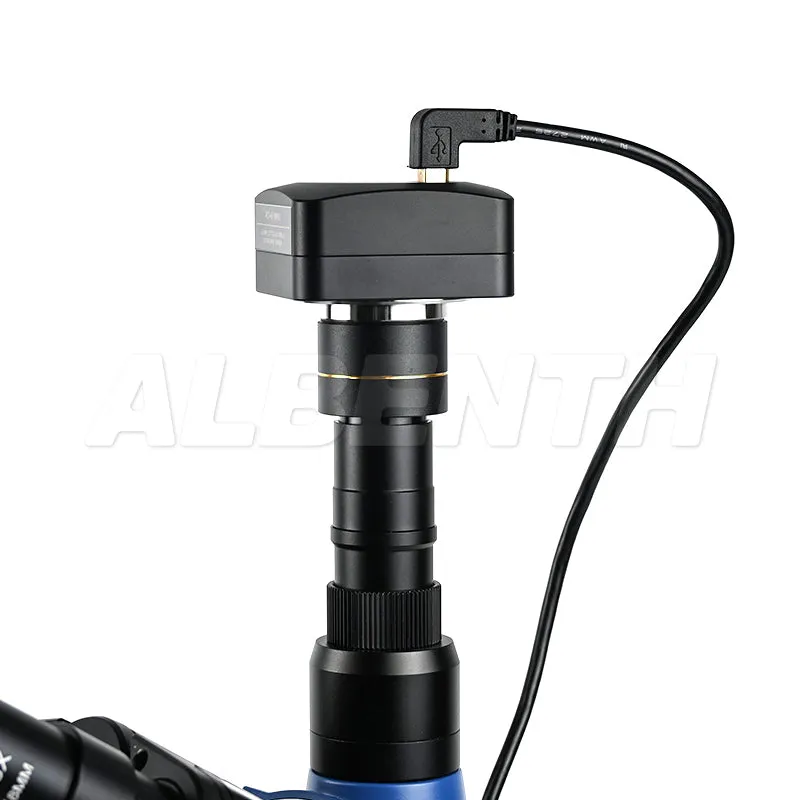

5.1MP USB CMOS Camera
● Sensor & Size(mm): 5.1M/AR0521(C) 1/2.5“ (5.70x4.28)
● Pixel(μm): 2.2x2.2
● G Sensitivity Dark Signal:
- 18.8ke-/lux
- 73dB
- 40dB
● FPS/Resolution:
- 7.0@2592x1944
- 27.7@1296x972
- 100.5@648x486
● Binning: 1x1, 2x2, 4x4
● Exposure: 0.2ms~2000ms
● Spectral Range: 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
● White Balance: ROI White Balance/ Manual Temp-Tint Adjustment
● Color Rendering Technique: Ultra Fine Color Engine
● Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc);
● Recording System: Still Picture and Movie
● Cooling System*: Natural
● Operating Temperature: -10 °C~ 50 °C
● Storage Temperature: -20 °C~ 60 °C
● Operating Humidity: 30~80%RH
● Storage Humidity: 10~60%RH
● Power Supply  : DC 5V over PC USB Port
● Operating System: Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux
● PC Requirements:
- CPU: Equal to Intel Core2 2.8GHz or Higher
- Memory: 2GB or More
- USB port: USB2.0 High-speed Port
- Display: 17" or Larger
- CD-ROM

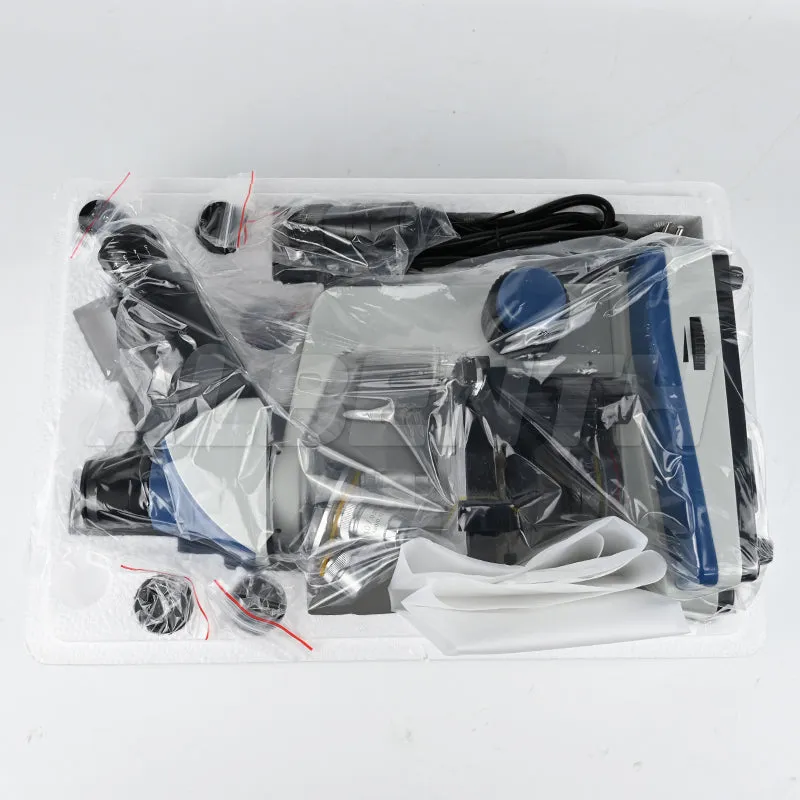

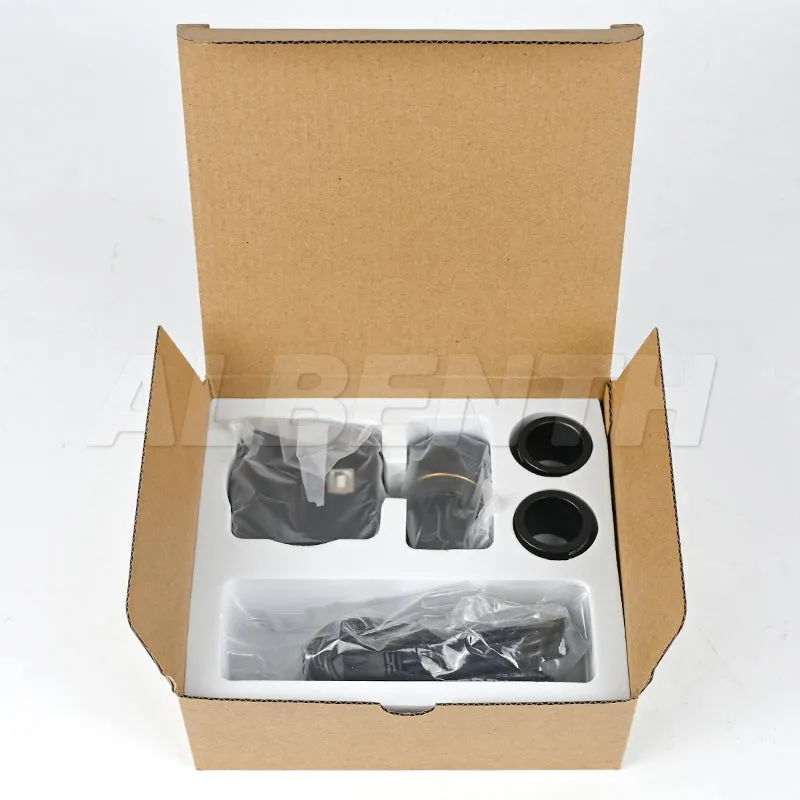

Paking list:

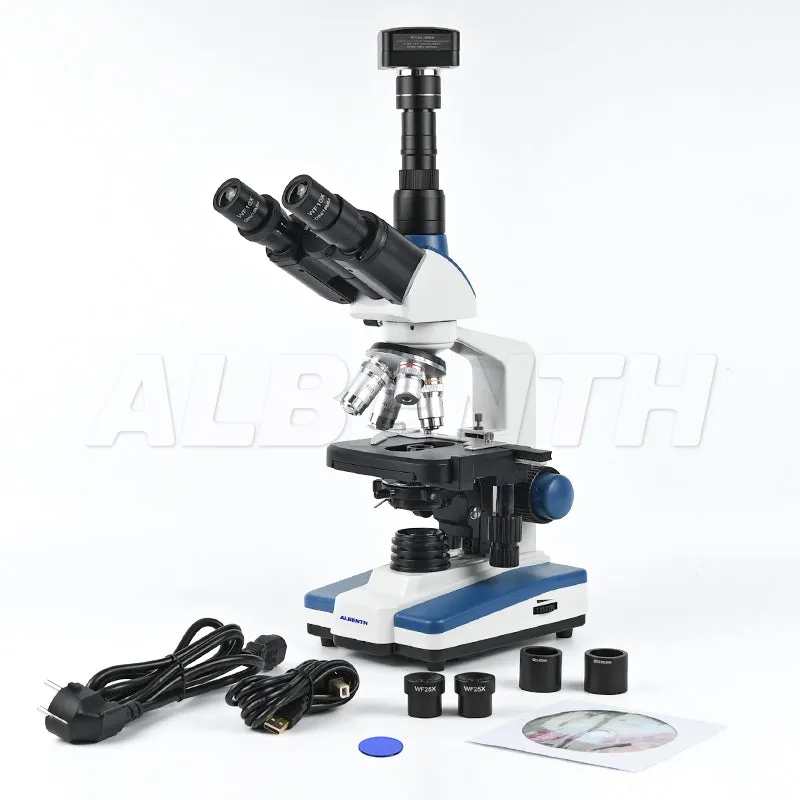

1x KHU-210T Triological Microscope
1x Pair of 10x eyepieces
1x Pair of 25x eyepieces
1x Camera adapter 1X
1x Achromatic objective 4X, 10X, 40X, 100X
1x Bule filter
1x Power cable
1x 5.1MP CMOS camera
1x USB2.0 cable /2.0m
1x CD (Driver & utilities software, Ø12cm)
1x 0.5X Fixed C-Mount Camera Adapter (For Dia.23.2mm eyepiece tube)
1x Adaptor rings for 30mm eyepiece tube (Dia.23.2mm to 30.0mm Ring)
1x Adaptor rings for 30.5mm eyepiece tube (Dia.23.2mm to 30.5mm Ring)
