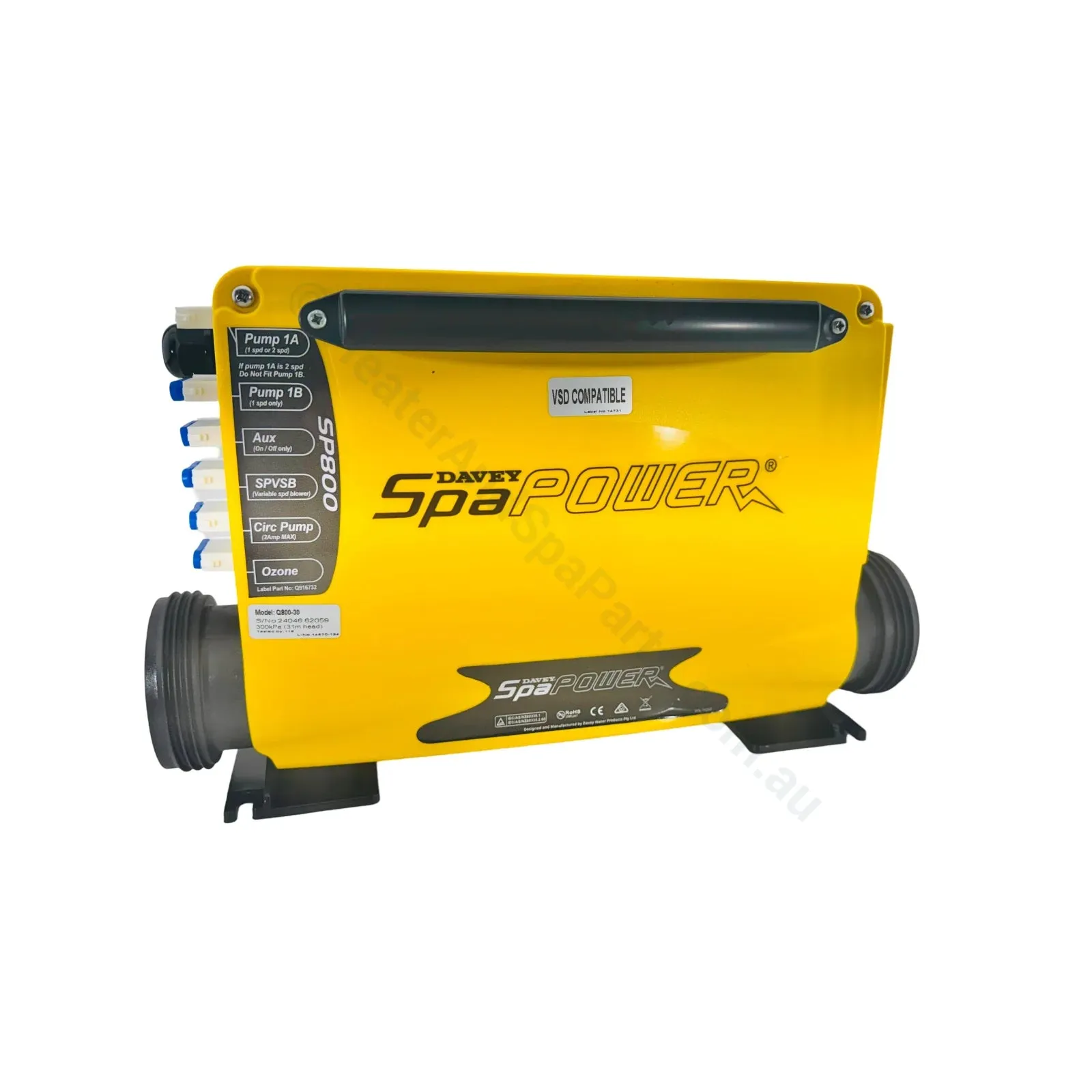

Davey SpaQuip Spa Power 800 / SP 800 replacement spa control box. Heavily used by Endless Spas and others over the years. Does not include touchpad or unions.
Can Control:
- 1 x Circulation Pump
- 2 x Single speed spa jet boost pump
- 1 x Single speed spa blower
- Davey Spa-Quip LED light(can run up to 4 Davey Spa-Quip LED lights, also can run new 12 volt LED light)
- 1 x Ozone generator
- This system uses AMP plugs.
Control kit includes:
- SP800 Control Box - (No touchpad)
- Heater of your chosen size
- O-rings
About:
High Voltage AMP Sockets : Pump 1A (one or two speed pump) Pump 2 (single speed pump, this socket can't be used if socket 1A has a two speed pump fitted). AUX Output (this socket can run a blower or pump) SPVSB (this socket can only be used for a Davey Variable speed blower) Circ Pump Socket, Ozone Socket.
Low Voltage Sockets inside controller: 2 X Touch pad sockets, 4 X Davey LED light sockets, 1 X in-pool temp sensor socket, 1 X 12volt light Output.
NOTE: If a 2-speed pump is fitted to Pump 1A socket you can't use 1B socket.
