Ford Meter Box
Plastic Meter Box Cover top lid
Round Type X or Type C Cover only

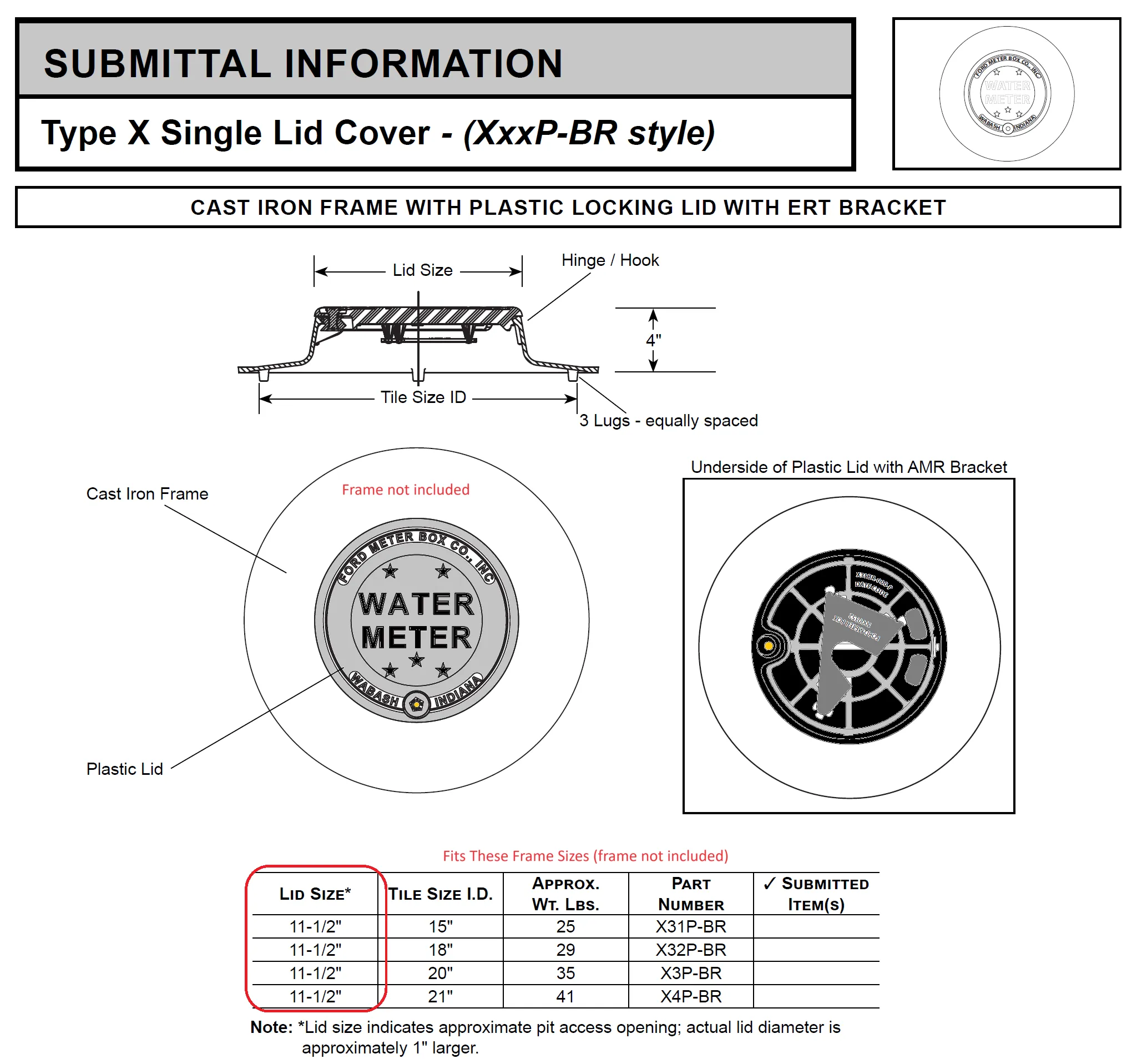

Plastic Lid for Type X Frames or rings, with AMR/AMI under lid bracket. This should also fit rings designed to be equal to Ford, but please check the dimensions in the description. Replacement top lid only. frame/ring not included. Can replace metal lids for A and W type meter box covers

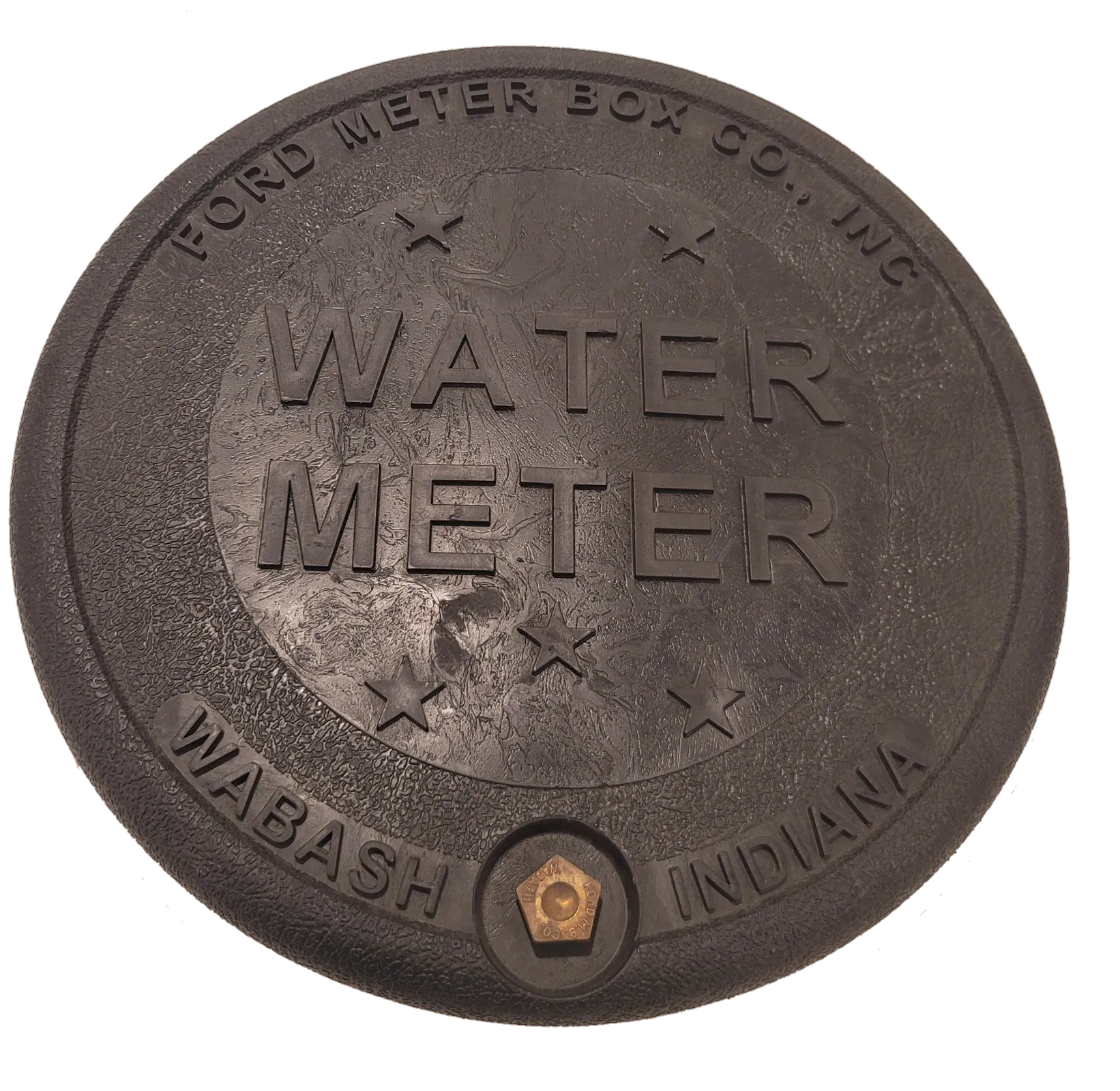

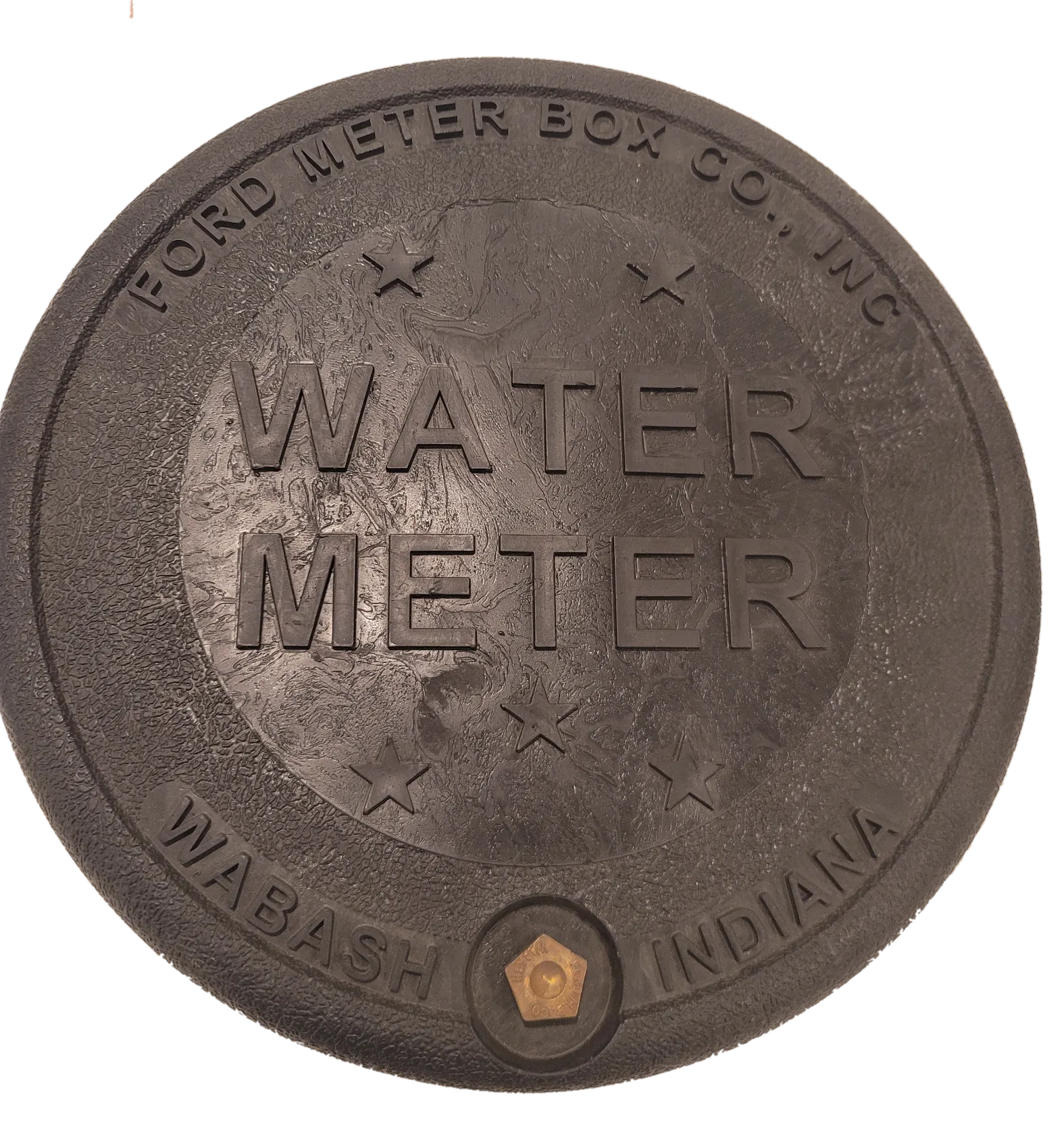

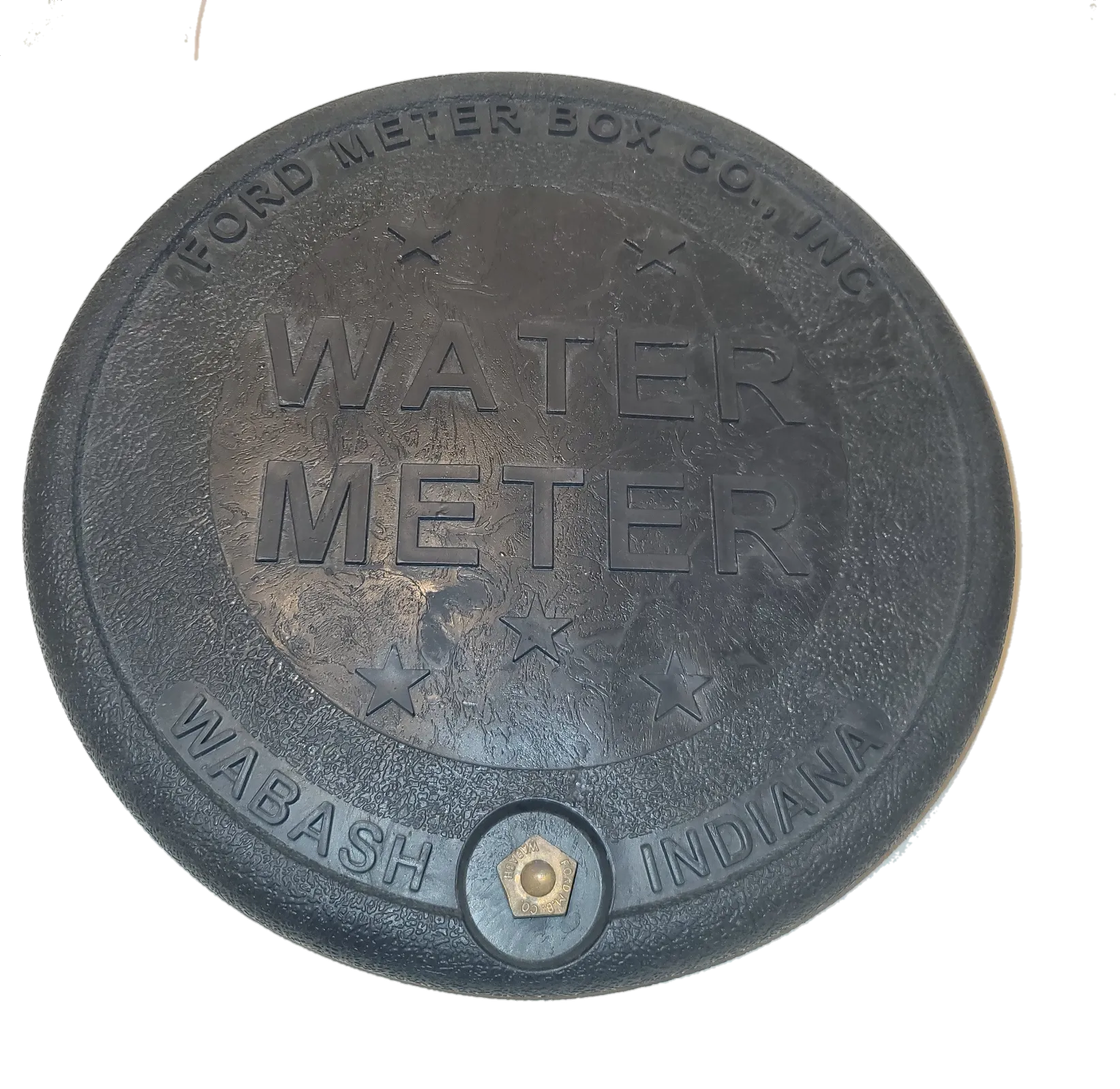

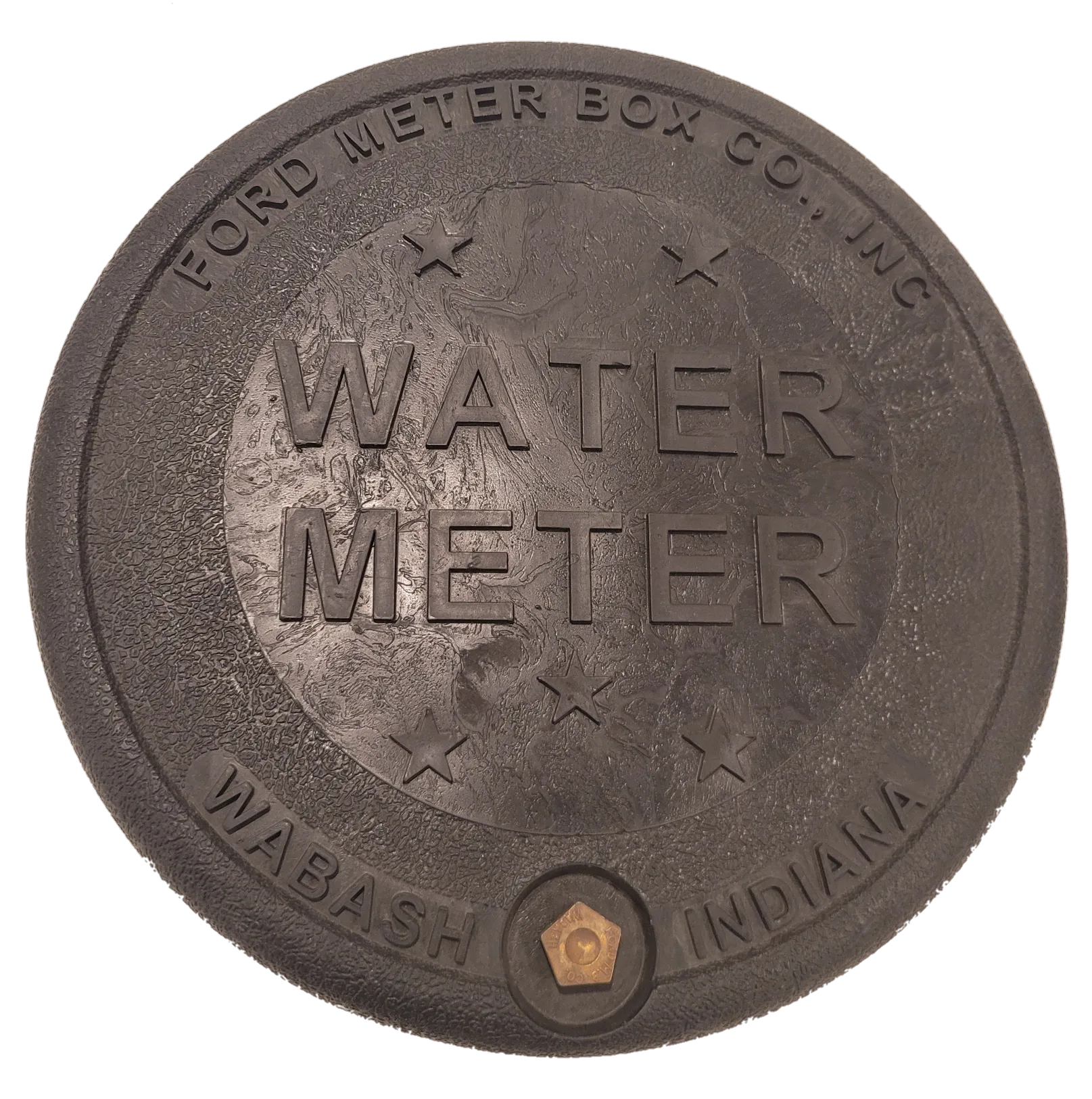

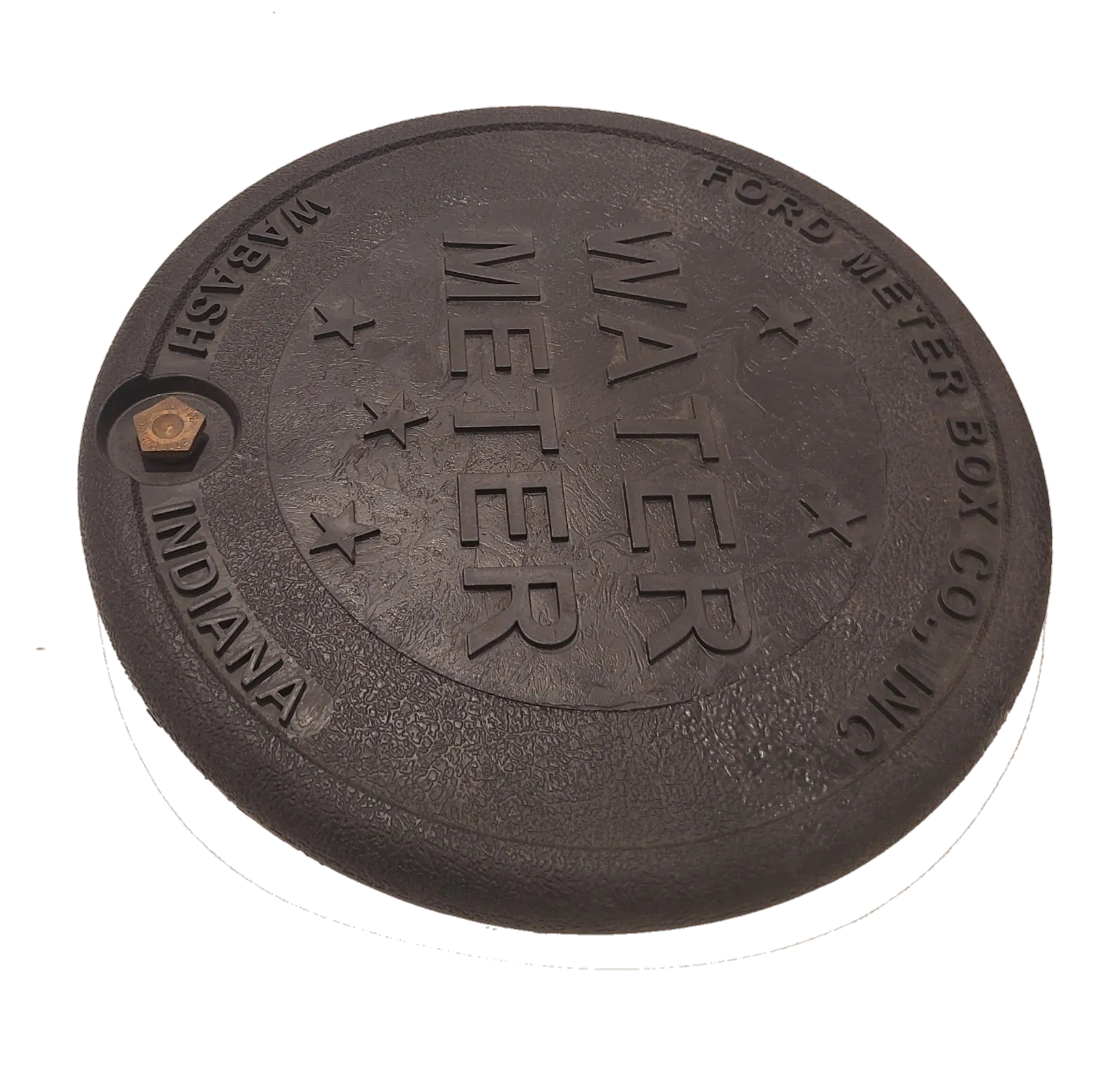

- Round Black Polypropylene Meter Box Cover with "WATER METER" embossed on top
- UV Resistant Polymer

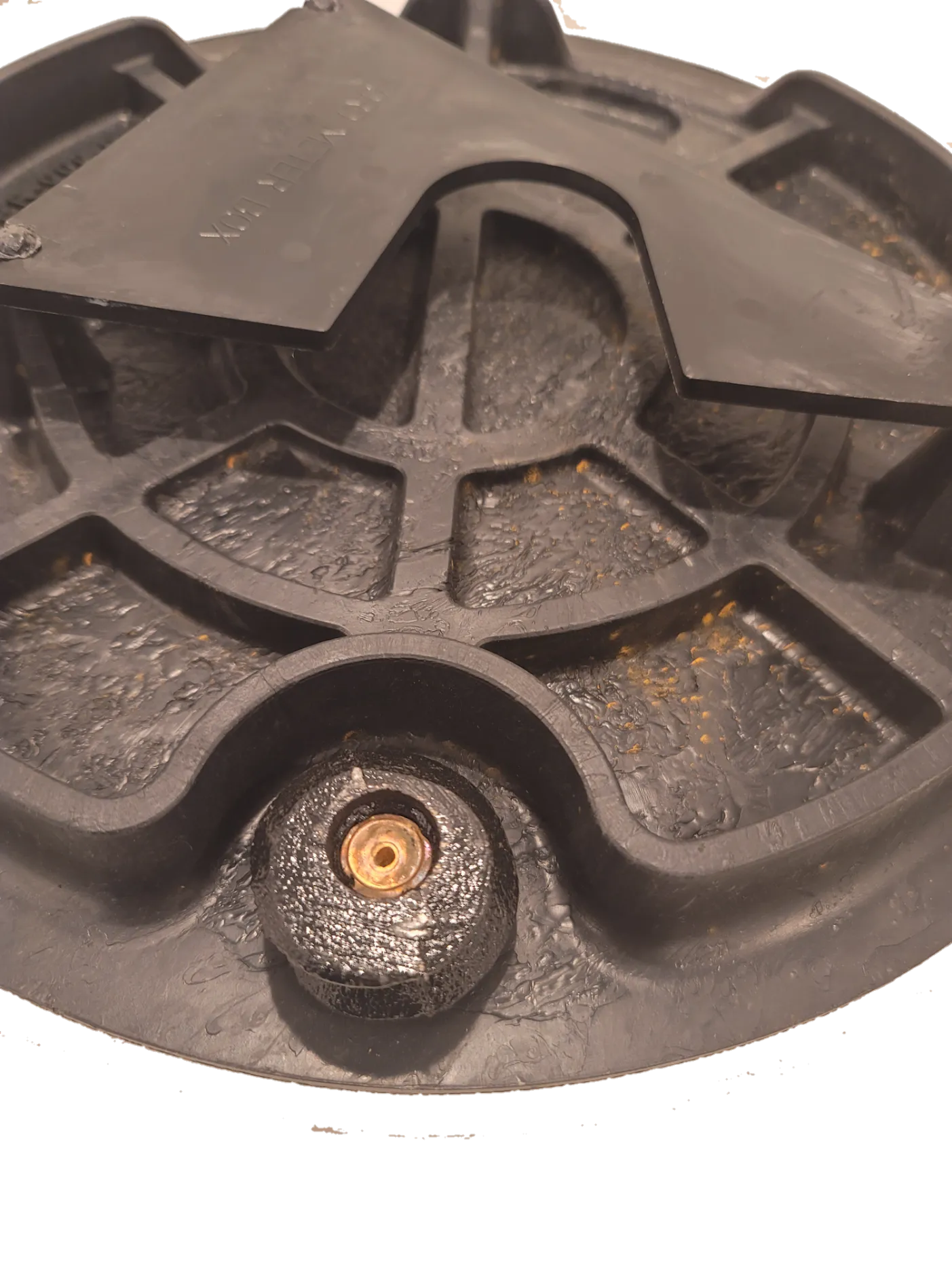

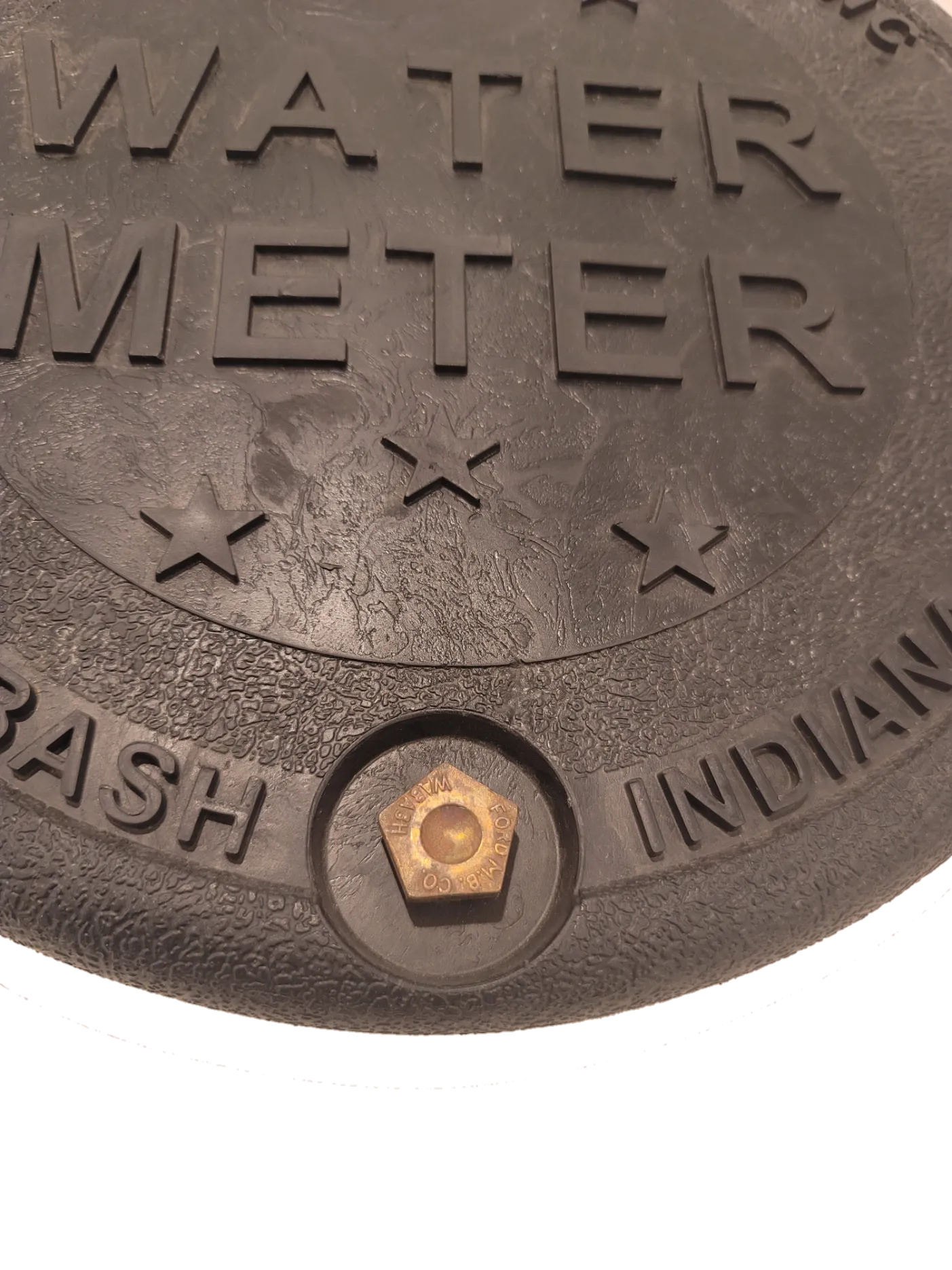

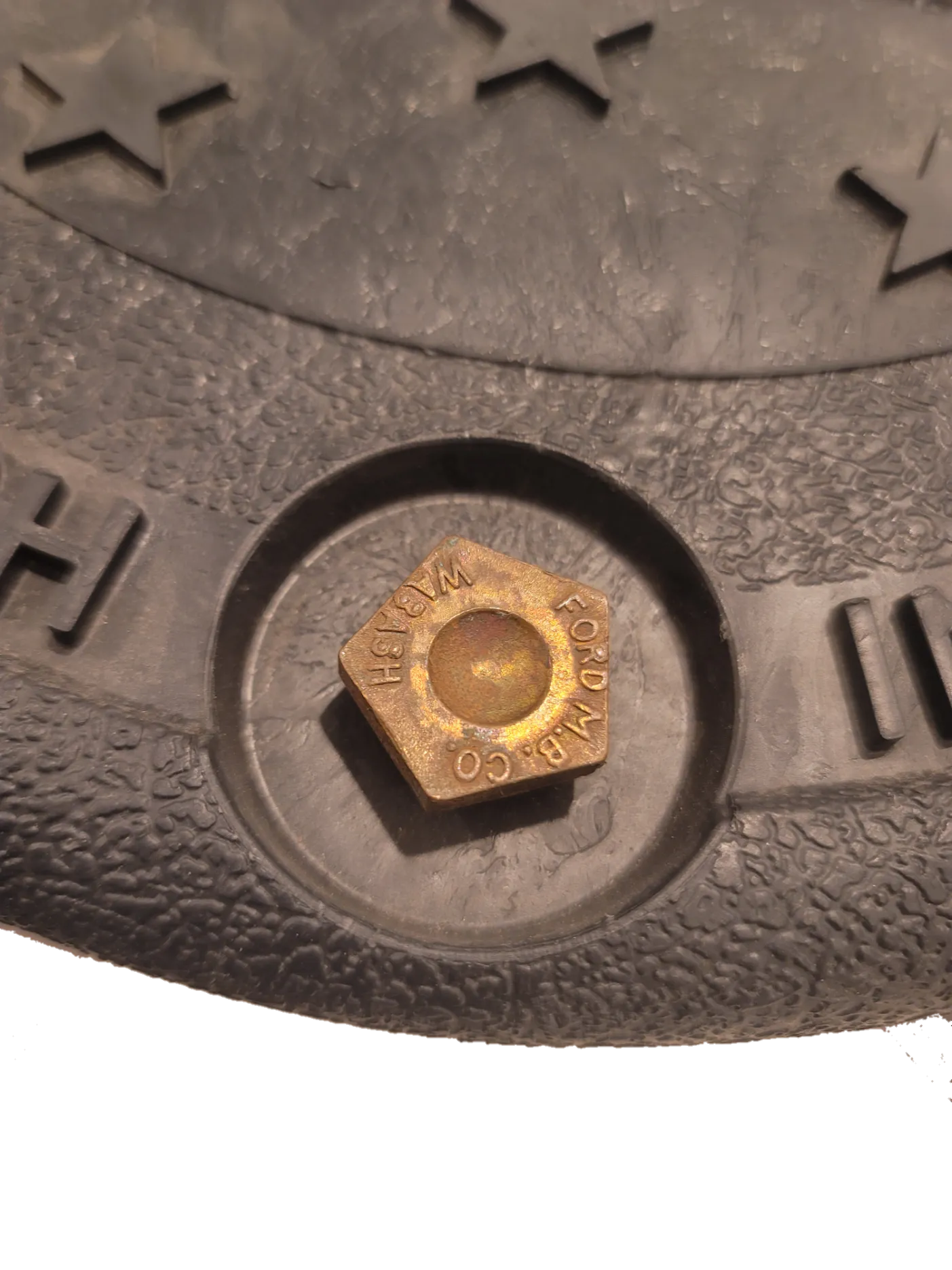

- Standard size brass pentagon bolt with cast iron worm gear on bottom

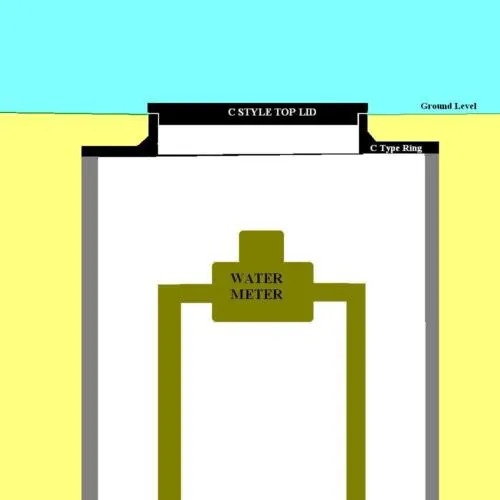

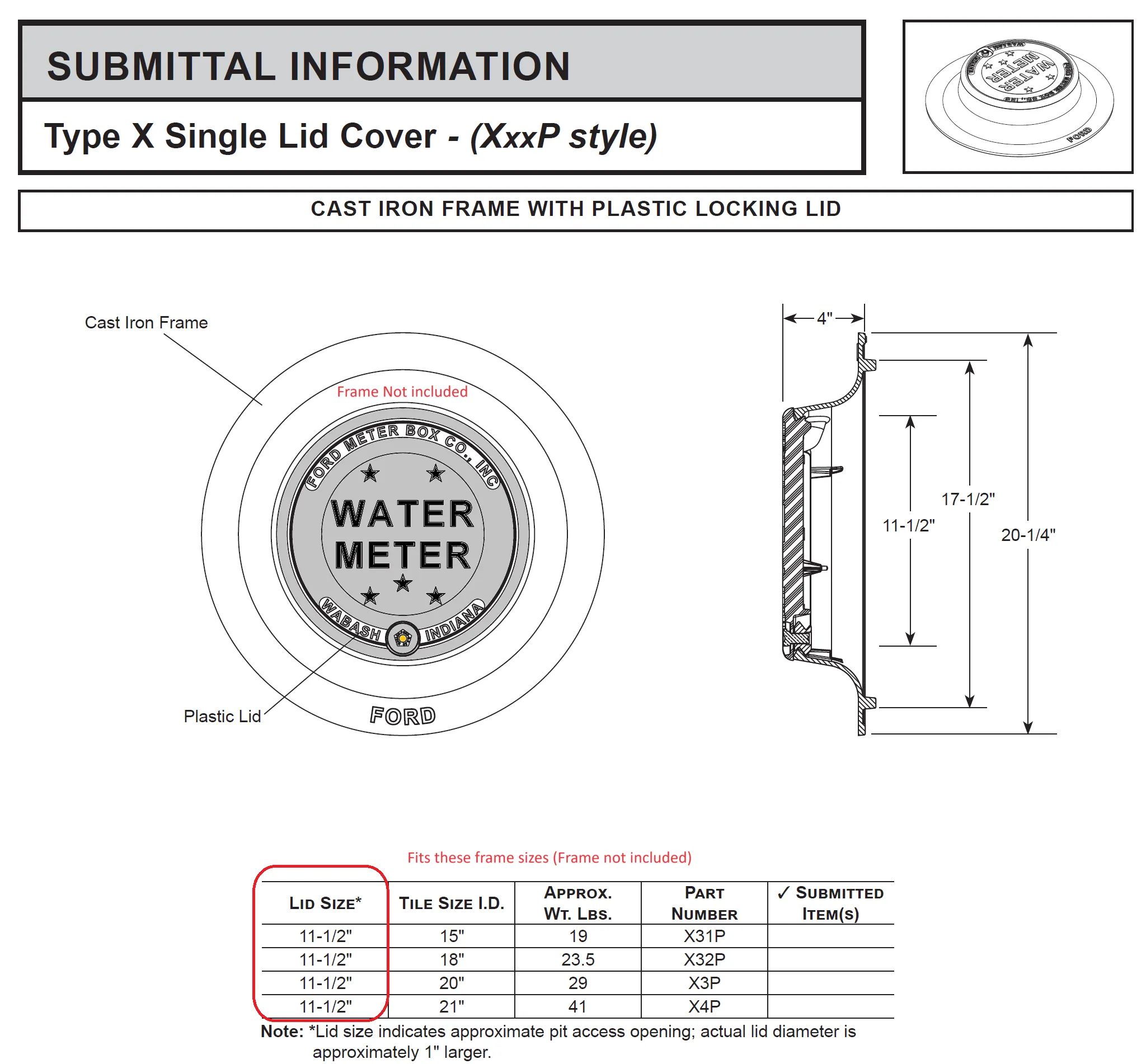

- Fits Ford Type X or C Frames (sits on and overlapping the rim of the frame with 11-1/2" Clear opening.

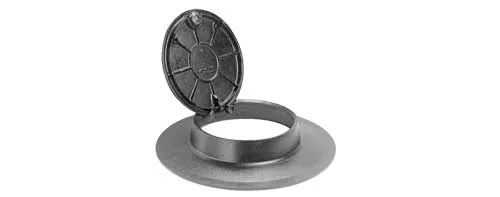

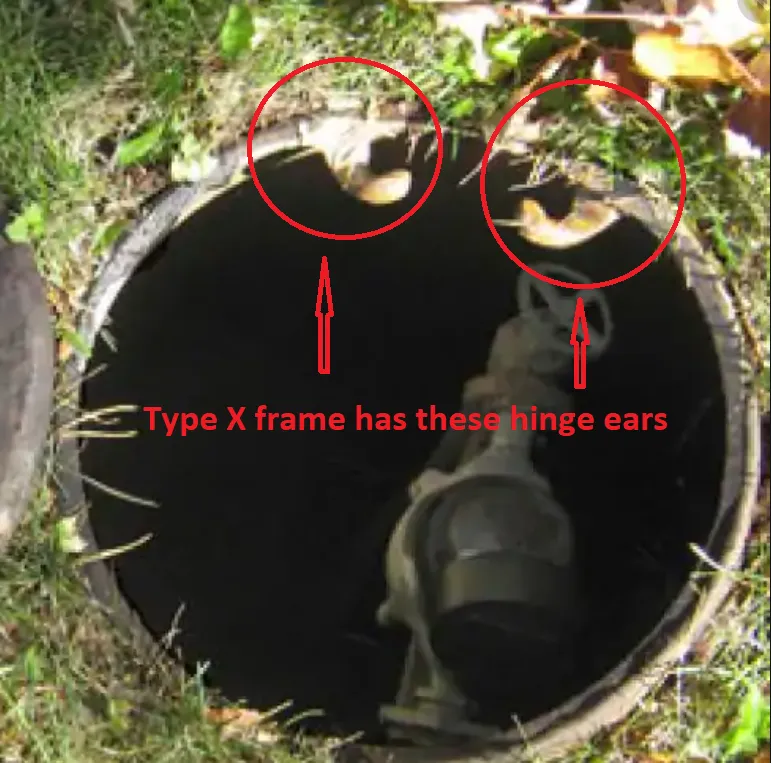

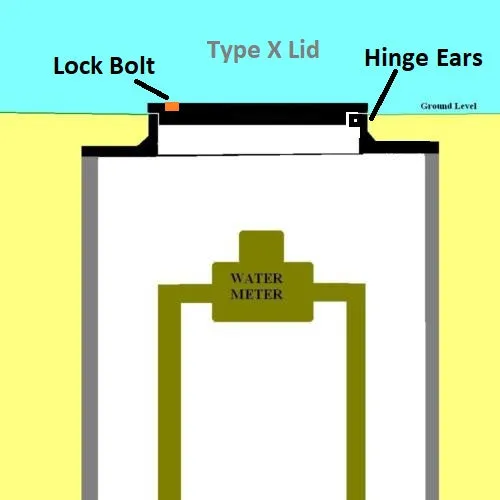

- X Type Frame has a specially designed hinge/hook to support lid while open

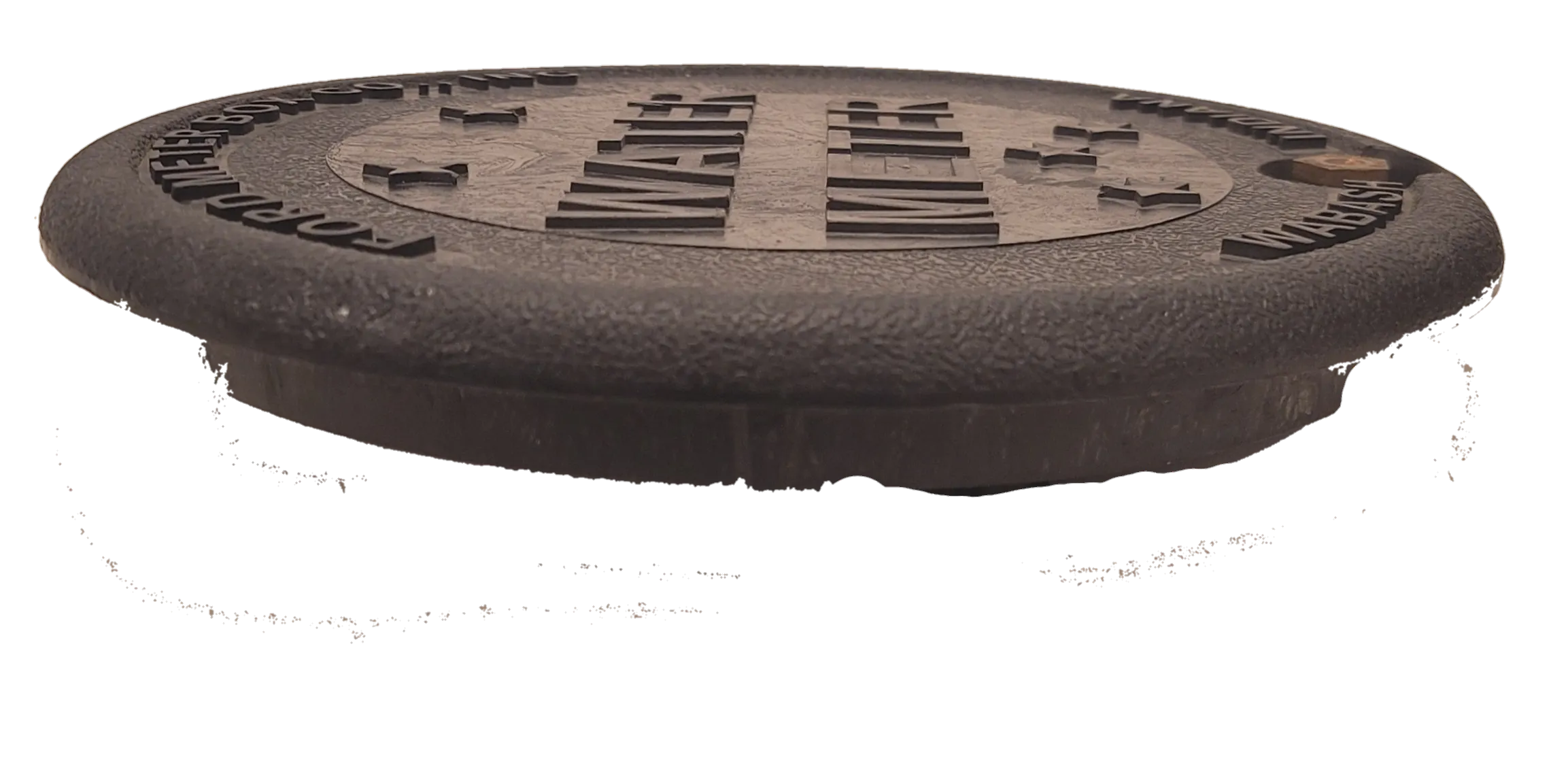

- Edge of top lid is rounded

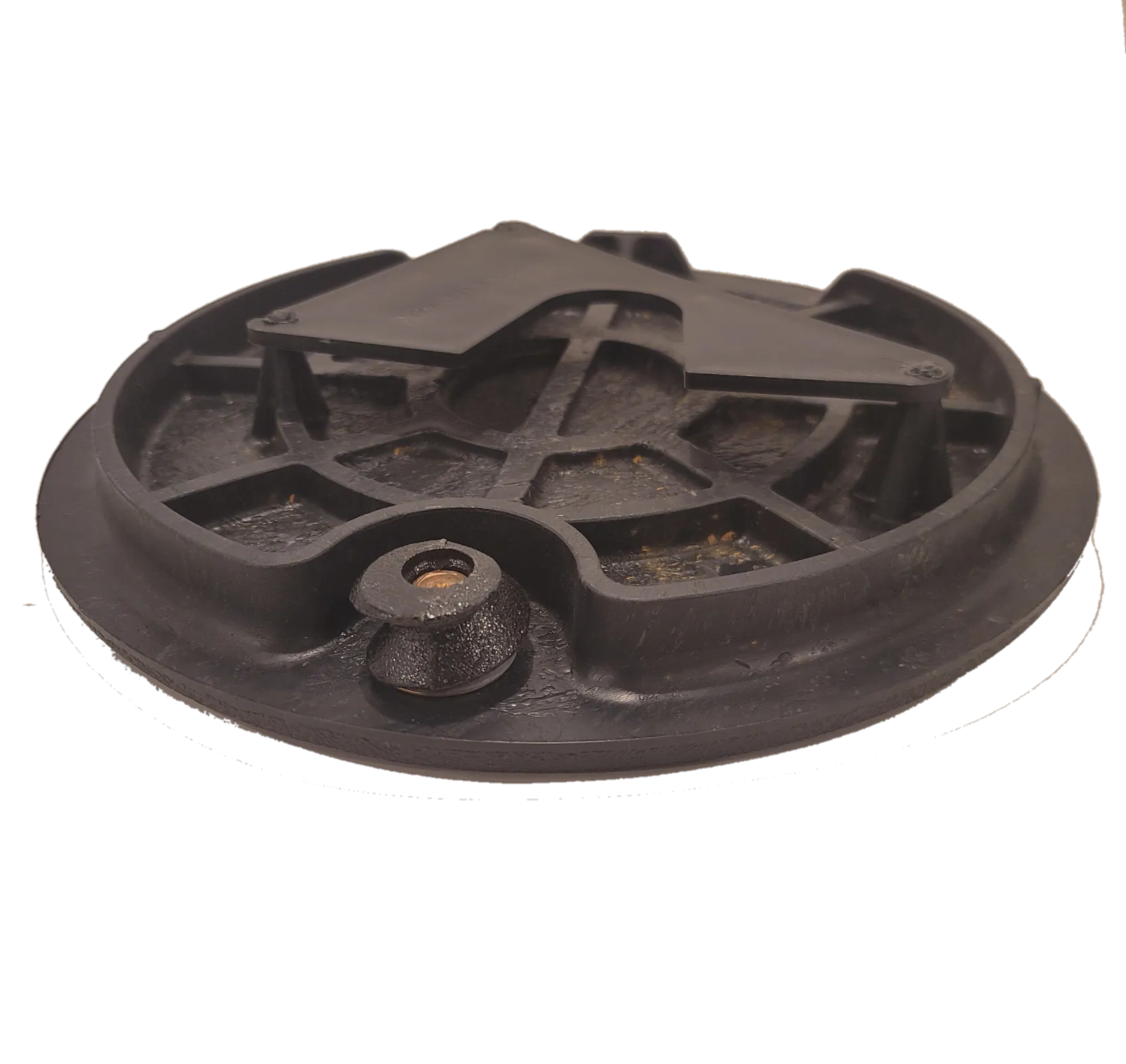

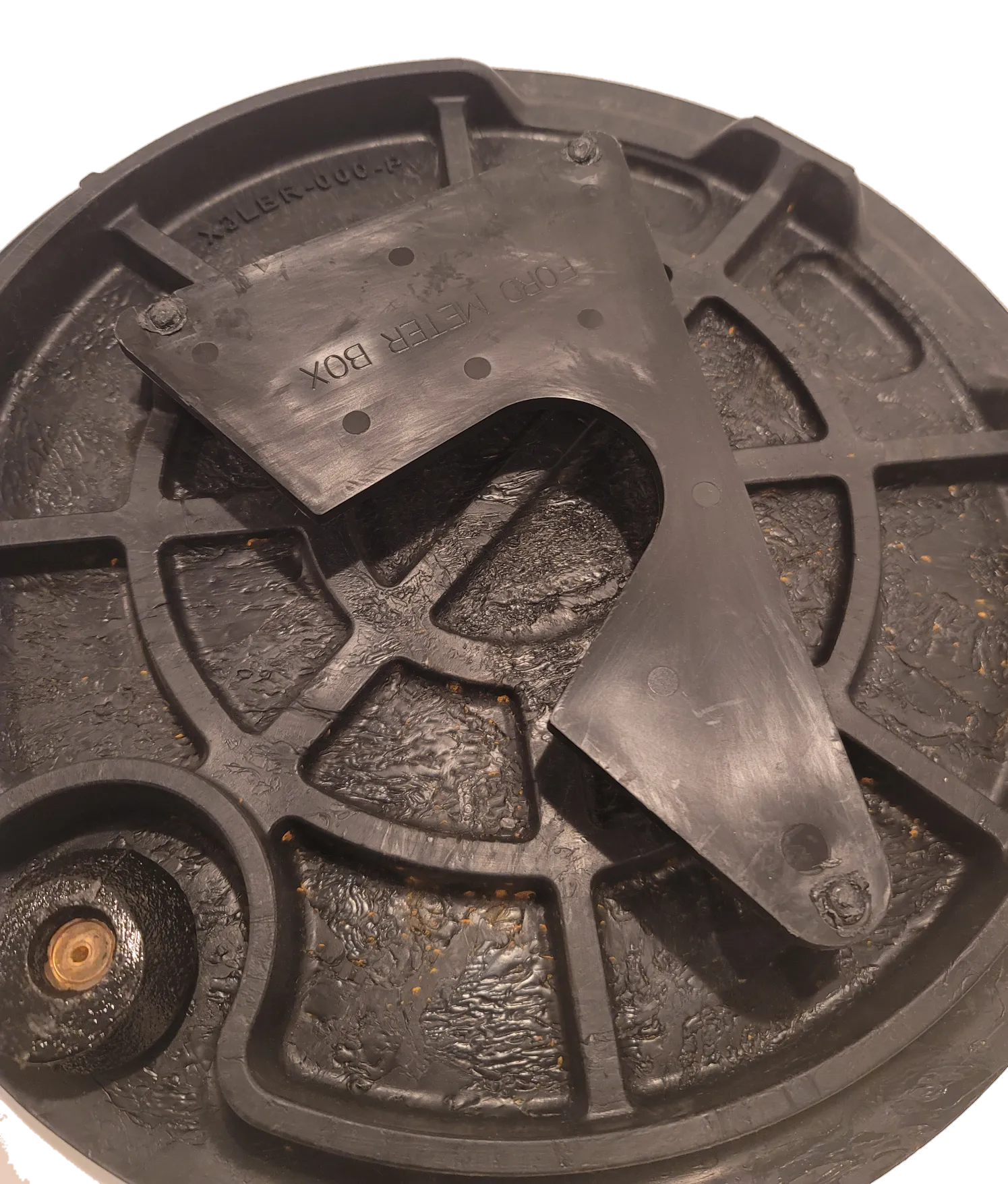

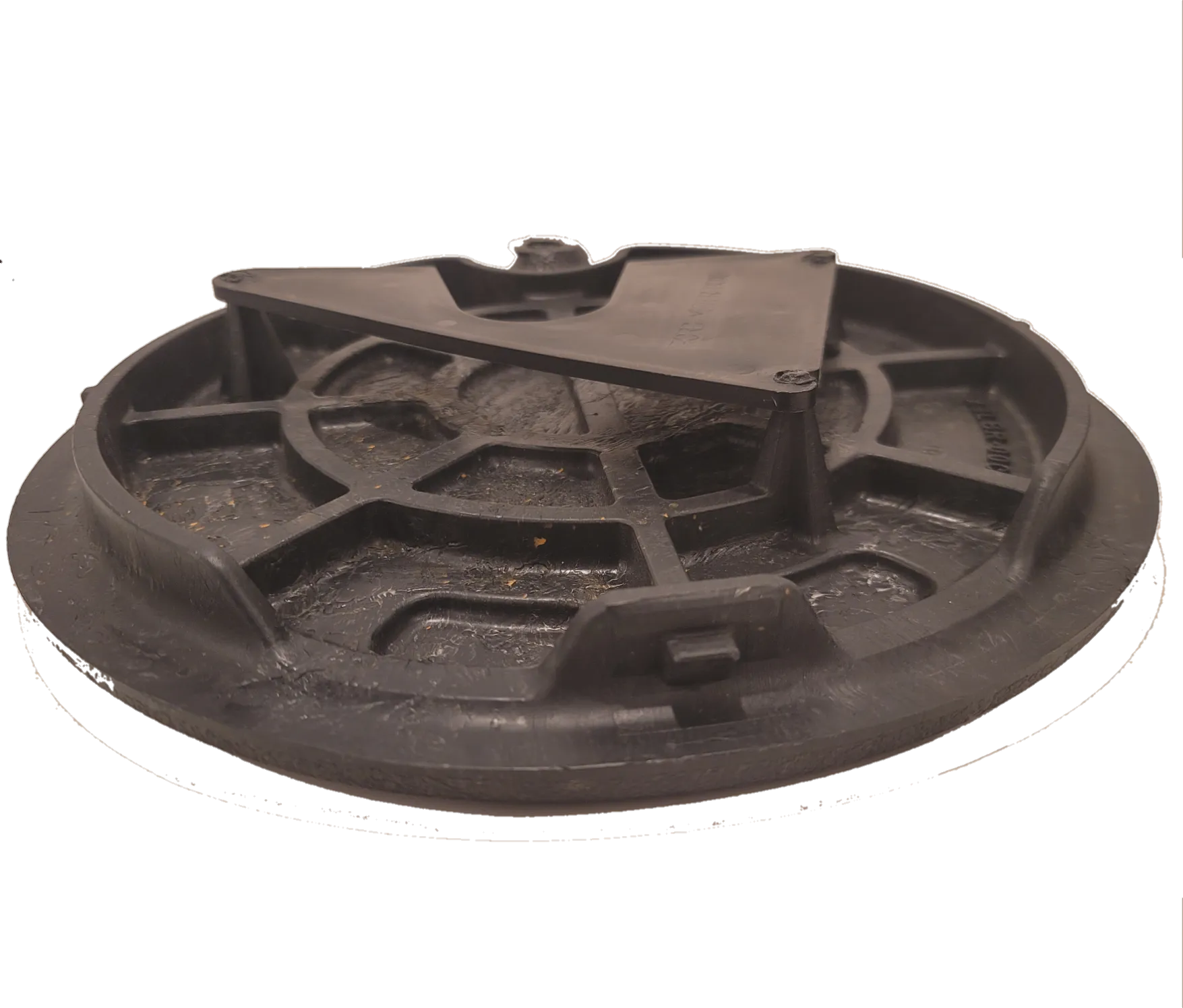

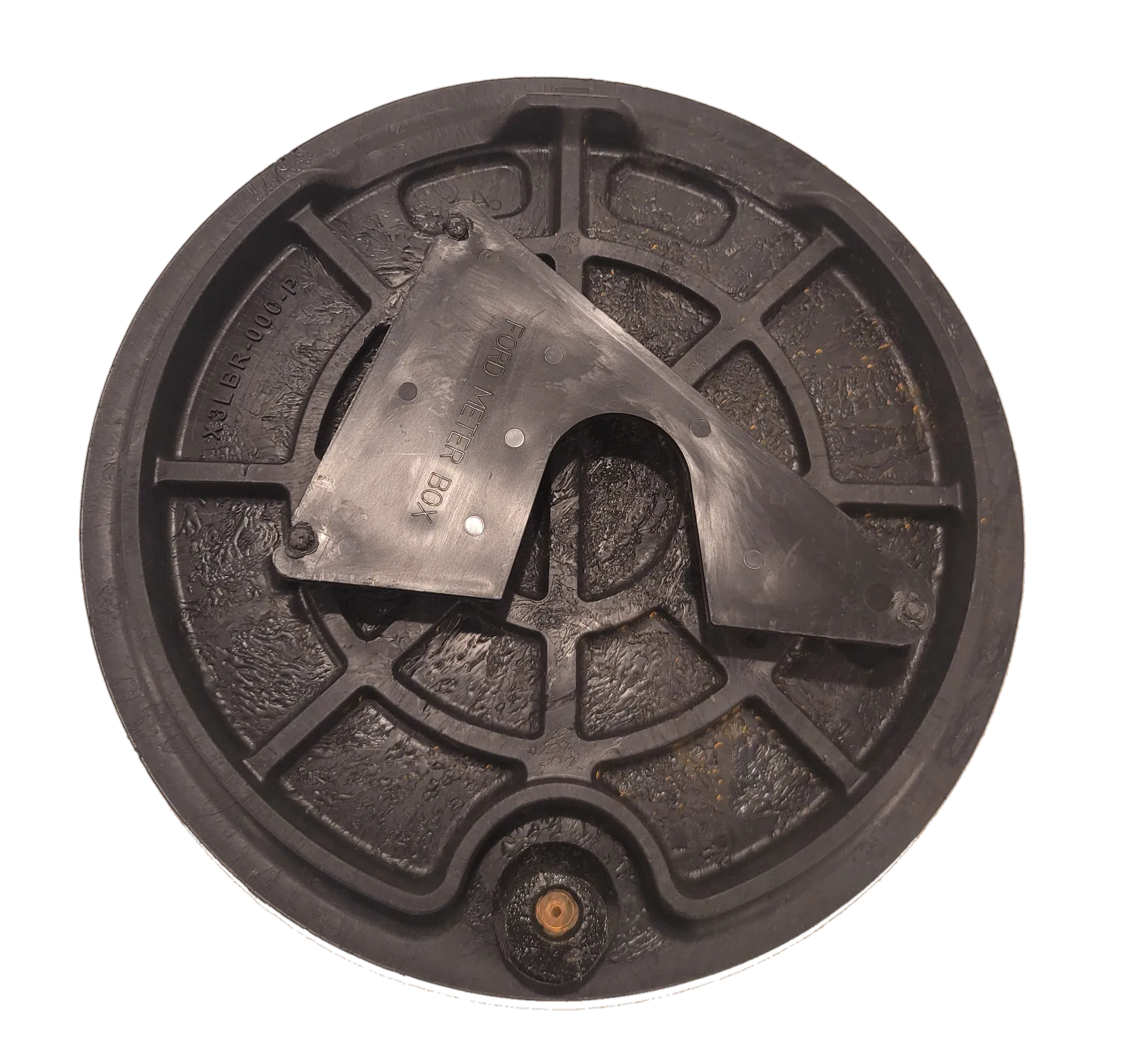

- AMR/AMI mounting bracket under led for radio transmitter devices such as those from Badger, Sensus, Zenner, Kamstrup, Neptune, Mueller/Hersey, and others.
- Radio wave transparent polymer while protecting the antenna under the lid.

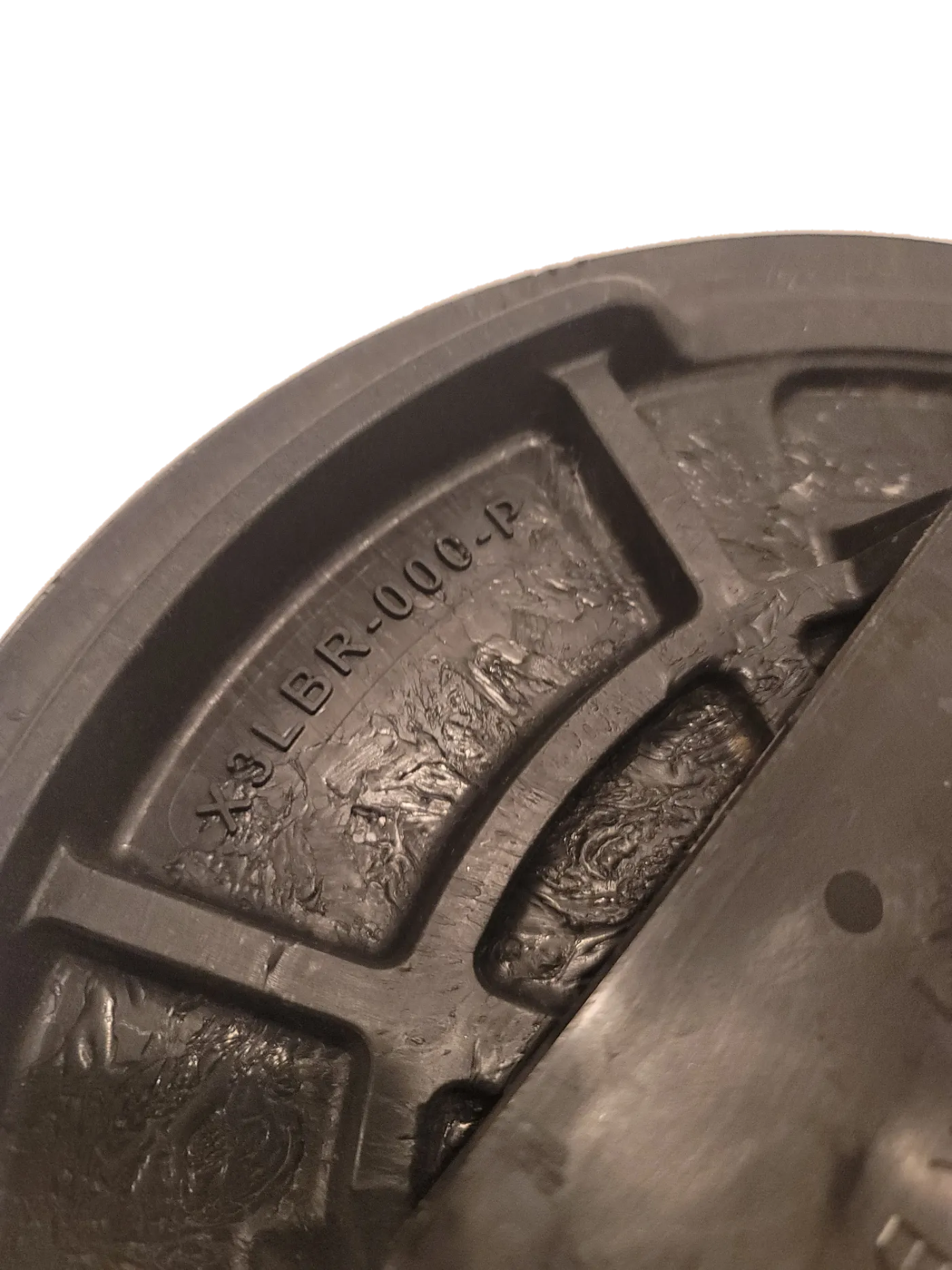

- Ford Part Number X3LBR (WA3LPR-BR)
Dimensions:
- Top rim diameter - 12-1/2" diameter
- Top rim thickness - 5/8" thick
- Bottom Diameter - 11-1/4"
- Bottom thickness - 3/4"
- Overall thickness (without AMR bracket) - 1-3/8"
- Overall thickness with AMR bracket - 2-1/4"
